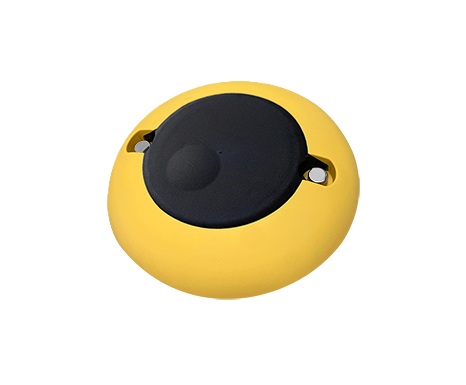

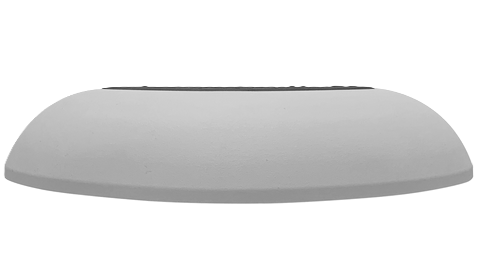

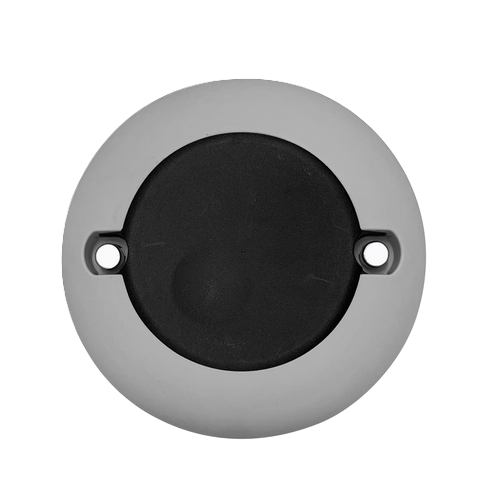

Smart Parking Sensor
Parking Management system
Smart Parking Sensor
The Battery-Operated Parking Management System utilizes advanced technologies such as NB-IoT or LPWAN (e.g., LoRaWAN) to detect the occupancy and vacancy of parking spaces both indoors and outdoors. This system employs battery-operated parking sensors placed in individual parking spaces to monitor their availability in real-time.
When a vehicle occupies or vacates a parking space, the sensors transmit data wirelessly to a centralized control system via NB-IoT or LPWAN communication networks. The control system processes this data and updates the parking status information, which can be accessed by drivers through various channels such as a mobile app or large display screens located at strategic points within the parking facility or nearby areas.
- Cellular:
- NB-IOT B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B70 / B85
- LoRaWAN:
- Band 868 / 920 / 922 / 926 / 928 / 932 MHz
- OTA:
- Supports FOTA and COTA
Key Specifications
Detailed datasheet available on request.
Connectivity
- Cellular:
- NB-IOT B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B70 / B85
- LoRaWAN:
- Band 868 / 920 / 922 / 926 / 928 / 932 MHz
- OTA:
- Supports FOTA and COTA
Mechanism:
- Detection Objects:
- Compact car, SUV, Motorcycle
- Detection Technology:
- mmWave + Magnetometer (independent sensing)
- Sensing Accuracy:
- 100% (SGS Laboratory certified)
Power and Mechnical:
- Power Supply:
- Industrial 27,000 mAh battery
- Battery Life:
- Up to 3 years (conditional)
- Enclosure Rating:
- IP68
- Operating Temperature:
- –20°C to 75°C (80°C for 3 hours)
Product Features
Engineered for industrial reliability and long-term TCO.
Dual‑Technology Precision Sensing
Combines mmWave radar and magnetometer detection for highly reliable vehicle presence detection across all vehicle types.
100% Accuracy (SGS Certified)
Independently verified sensing accuracy ensures dependable performance for smart‑parking and automation systems.
Multi‑Protocol IoT Connectivity
Supports LoRaWAN, NB‑IoT, and BLE, enabling flexible deployment across private networks, city platforms, and telecom operators.
Long‑Life Industrial Battery
Powered by a 27,000 mAh industrial battery delivering up to 3 years of operation with zero maintenance.
Rugged IP68 Outdoor Enclosure
Engineered for harsh environments with full dust/water protection, salt‑spray resistance, and wide temperature tolerance.
Wide‑Area Wireless Coverage
Delivers 500 m to 5 km line‑of‑sight communication range, enabling scalable deployments across large parking zones or city blocks.

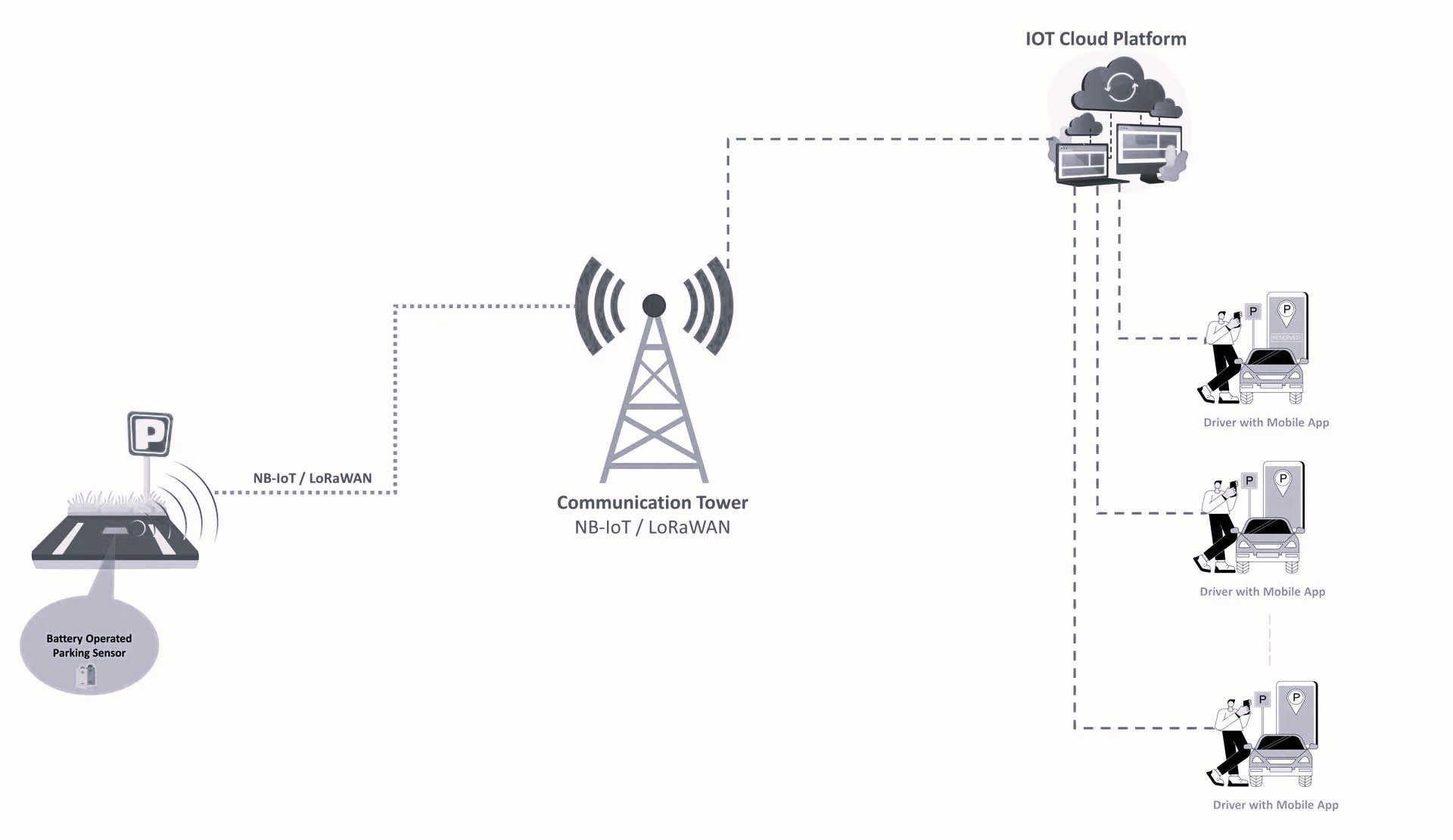

Solution Architecture
How Smart Parking Sensor integrates into a complete NET WIZARDS architecture.
Integration Overview
The parking detection sensor integrates seamlessly into municipal smart‑city platforms to deliver real‑time visibility of parking availability across streets, districts, and mobility zones. By providing accurate, instant occupancy data through LoRaWAN, NB‑IoT, or BLE, the system enables dynamic guidance for drivers, automated enforcement, and data‑driven mobility planning. Cities can unify this sensor data with ANPR, traffic flow analytics, and citizen mobile apps to create a fully connected mobility ecosystem. Through this integration, municipalities significantly reduce unnecessary vehicle circulation caused by drivers searching for parking — one of the largest contributors to urban congestion. With fewer cars idling or circling, cities experience measurable reductions in traffic jams, CO₂ emissions, and fuel consumption, while improving road efficiency and overall air quality. The result is a cleaner, smoother, and more sustainable urban mobility experience for residents and visitors.
