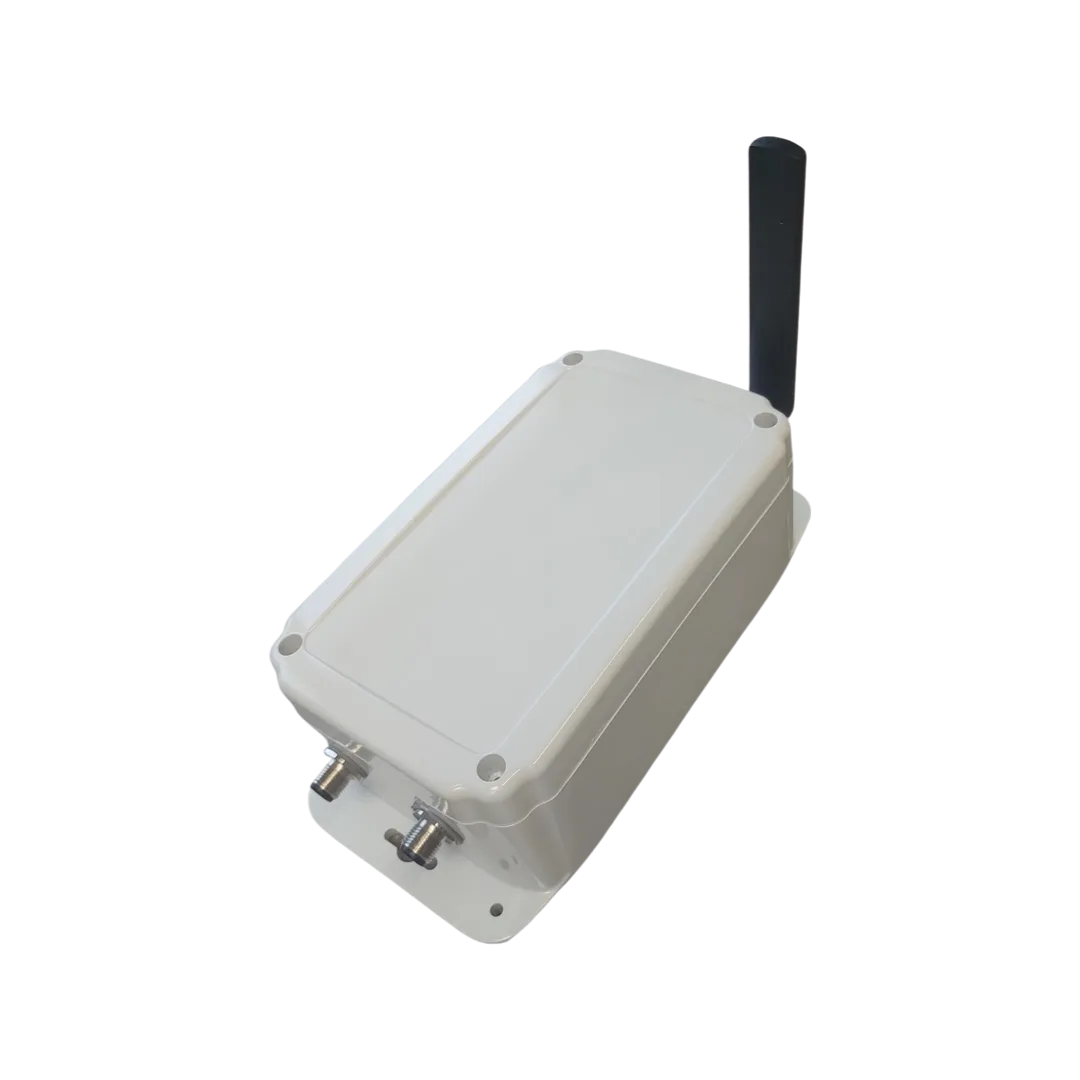

Battery Operated M-Bus / Modbus Gateway
Multi-protocol metering gateway for water, electricity and gas, battery-powered, NB-IOT/LoRaWAN-enabled.
Battery Operated M-Bus / Modbus Gateway
Smart Metering & Sensor Gateway is a low-power remote data acquisition gateway designed for smart city and utility applications.
It connects to metering devices and field sensors and securely transmits data over NB-IoT or LoRaWAN networks.
With battery-operated design and rugged enclosure, it enables long-term, maintenance-free deployment in harsh environments.
- M-Bus
- 1 Slave of M-Bus
- Modbus
- 2 Modbus RTU Input
Key Specifications
Detailed datasheet available on request.
Sources Input:
- M-Bus
- 1 Slave of M-Bus
- Modbus
- 2 Modbus RTU Input
Connectivity:
- TCP/IP Connectivity:
- Cellular NB-IOT , LoRaWAN
- Communication Protocol:
- UDP, TCP , MQTT
Mechanical and Power System:
- Battery:
- 36,000 mAh Lithium Battery
- Dimensions:
- 16cm x 9cm x 8cm
- Ingress Protection:
- IP-68 Waterproof
- Enclosure Material:
- UL94V2 Plastic with Anti-UV function, 6 x Stainless Screws
Product Features
Engineered for industrial reliability and long-term TCO.
True Battery Operation
5–7 year battery life with typical sub-metering profiles.
Multi-Protocol
M-Bus, Modbus RTU and pulse counters in one device.
LoRaWAN Native
Works on public networks and our private LoRaWAN deployments.
Tamper Detection
Magnetic, accelerometer and enclosure tamper alerts.
Remote Configuration
Wake-up windows for over-the-air config and firmware updates.
Industrial Build
IP65 enclosure rated -25°C to +70°C operation.

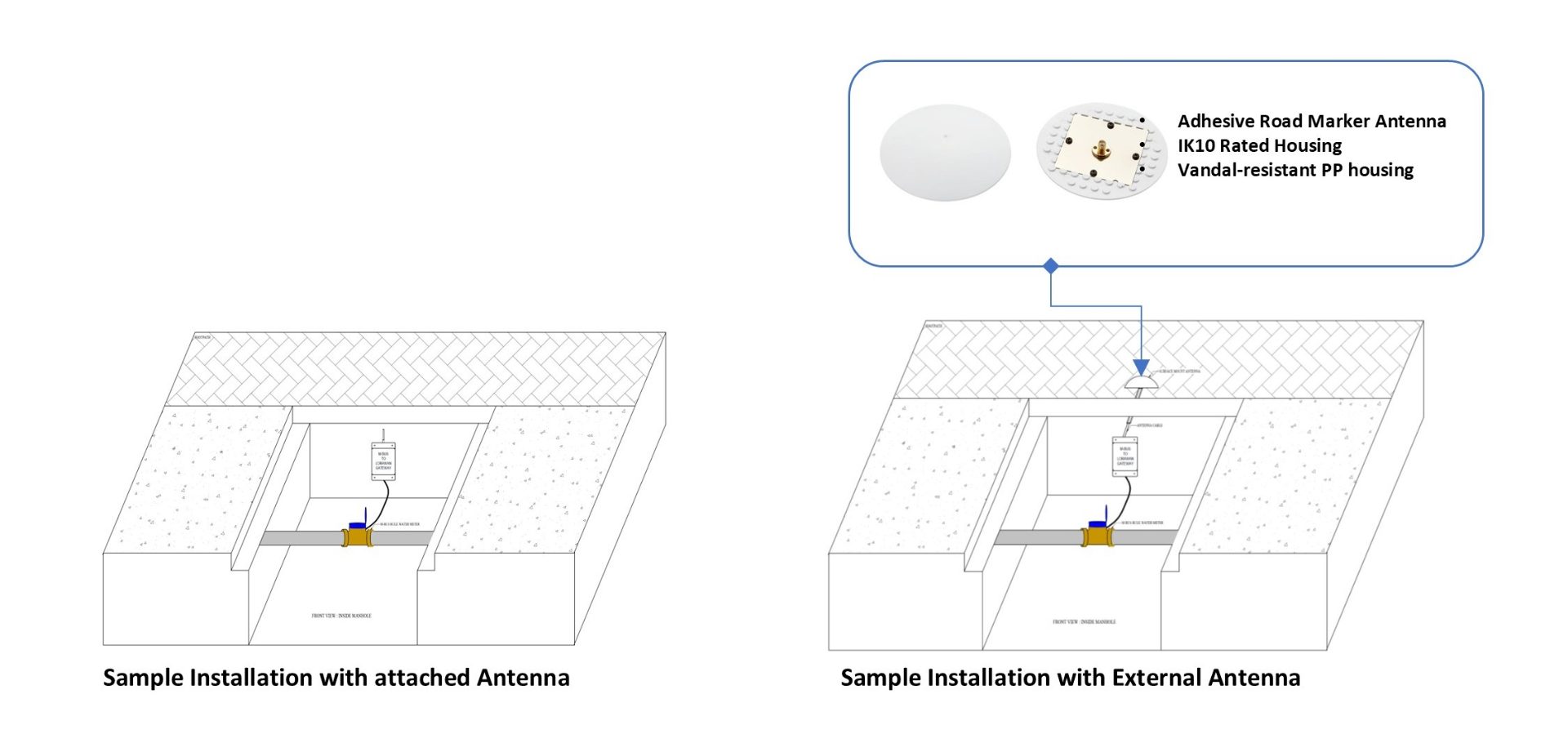

Solution Architecture
How Battery Operated M-Bus / Modbus Gateway integrates into a complete NET WIZARDS architecture.
Integration Overview
The Smart Metering & Sensor Gateway is ideal for remote utility and smart‑city deployments where meters and field sensors must be monitored without on‑site power or network infrastructure. It connects directly to water, electricity, and BTU meters, including bulk water meters across city water networks, as well as pressure, flow, environmental, leakage, and other field sensors. The gateway securely transmits consumption data and critical alarms to the cloud over NB‑IoT or LoRaWAN, enabling utilities to detect leaks, monitor supply‑demand patterns, and manage distribution more efficiently. Its battery‑operated, ruggedized design makes it perfectly suited for underground chambers, valve boxes, district cooling plants, irrigation networks, and remote utility assets where long‑term, maintenance‑free operation is essential. By enabling reliable data acquisition in harsh or inaccessible environments, the gateway supports accurate billing, network optimization, predictive maintenance, and city‑wide digital transformation initiatives.
