Fire Alarm Management Gateway
Networked fire panel monitoring with multi-protocol support and cloud-ready alerting for facilities and industrial sites.
Fire Alarm Management Gateway
Remote Alarm Management Gateway is a versatile monitoring gateway designed to collect, process, and transmit alarms from any system capable of generating alarms, regardless of vendor or application.
It supports multiple industrial and building protocols, enabling seamless integration with fire systems, utilities, and electromechanical assets.
With dual cellular connectivity and AC/DC power options, it ensures reliable alarm delivery even during power or network outages.
- Volt Free Contact (VFC):
- 16 volt-free (VFC) contact inputs (expandable up to 64)
- Industrial Protocols:
- Modbus RTU/TCP , BACnet RSTP/TCP
Key Specifications
Detailed datasheet available on request.
Sources of Integration
- Volt Free Contact (VFC):
- 16 volt-free (VFC) contact inputs (expandable up to 64)
- Industrial Protocols:
- Modbus RTU/TCP , BACnet RSTP/TCP
Connectivity:
- TCP/IP Connectivity:
- Cellular 3G/4G , Ethernet 10/100
- Communication Protocol:
- MQTT, MQTTs, HTTPS (TCP)
Power System
- Direct AC:
- 220VAC Power Input
- Battery:
- 12VDC Battery Backup
- Battery Monitoring:
- FACP Backup Battery Monitoring
Product Features
Engineered for industrial reliability and long-term TCO.
Multi-Source Alarm Integration
Collects alarms from a wide range of systems such as Fire Alarm Control Panels (FACP), water pumps, elevators, escalators, gas detection systems, and other alarm-generating devices using standard industrial interfaces.
Flexible Input Architecture
Equipped with 16 volt-free (VFC) contact inputs (expandable up to 64), allowing monitoring of multiple alarm and fault signals across different subsystems from a single gateway.
Industrial & BMS Protocol Support
Supports Modbus RTU/TCP and BACnet MSTP/IP over RS-485 or Ethernet, enabling direct integration with Building Management Systems and industrial controllers.
Dual Cellular Communication for Reliability
Features two cellular modules supporting NB-IoT and 3G/4G/LTE, ensuring continuous alarm transmission even if one network path is unavailable.
Event-Driven Control Outputs
Includes 4 high-current relay outputs that can be configured to trigger external devices or actions based on received alarms and system logic.
Resilient Power & On-Site Diagnostics
Supports AC and DC power inputs, including backup from external batteries, with built-in display, status LEDs, tamper detection, and OTA support for simplified maintenance and long-term operation.

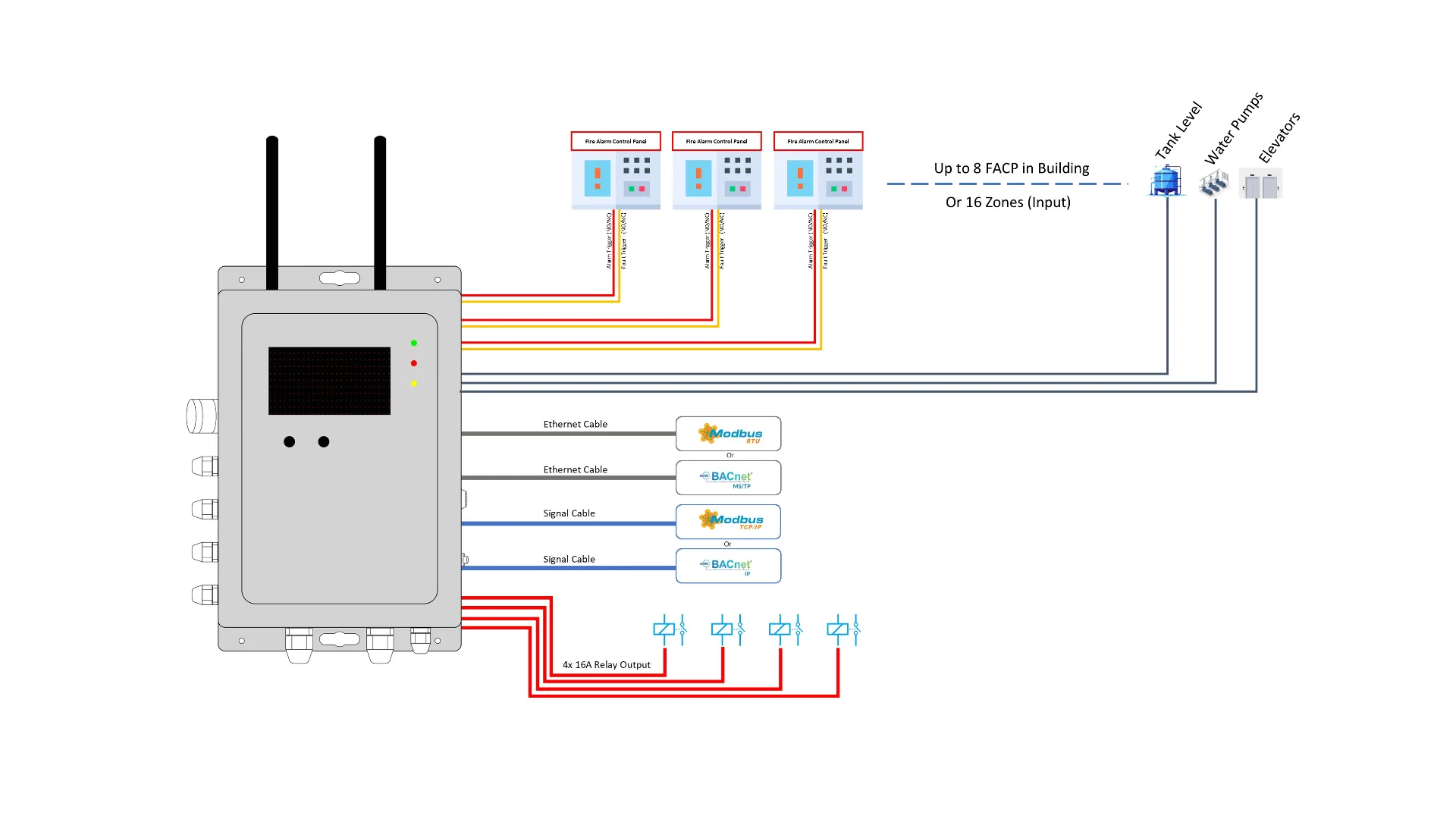

Solution Architecture
How Fire Alarm Management Gateway integrates into a complete NET WIZARDS architecture.
Integration Overview
Our Fire Alarm Gateway is deployed across buildings and industrial sites to centralize alarms from any life‑safety or electromechanical system, whether it’s a Fire Alarm Control Panel (FACP), elevators, escalators, water pumps, generators, or any equipment exposing VFC contacts or industrial protocols. It acts as a unified collection and transmission layer, capturing events at the edge and pushing them securely to the cloud platform for real‑time monitoring, escalation, and compliance reporting. By bridging legacy panels and modern IoT workflows, and backed by dual‑SIM cellular and AC/DC power redundancy, the gateway ensures that every critical alarm, fire, mechanical failure, utility outage, or safety event, is delivered without interruption, even during power loss or network downtime.
