Smart Wastbin
A rugged, long‑life smart waste bin sensor that uses optical scanning and IoT connectivity to monitor bin fill levels in real time.
Smart Wastbin
The B01 Smart Waste Bin Sensor is an advanced IoT device designed to accurately detect the fill level of medium and large waste bins using high‑precision optical scanning technology. Once installed on the bin’s inner ceiling, it continuously measures capacity and transmits real‑time data via LoRaWAN or NB‑IoT to the central management platform. This enables municipalities and facility operators to optimize collection routes, reduce unnecessary trips, and maintain cleaner public spaces with minimal operational effort.
Built with a rugged IP68 enclosure, 6‑axis movement sensing, and an ultra‑long‑life 19Ah industrial battery, the B01 is engineered for durability and maintenance‑free operation for up to five years. Its recycled‑material construction supports circular economy initiatives, while BLE‑based configuration and OTA updates simplify deployment and lifecycle management. Ideal for city streets, parks, malls, airports, and commercial complexes, the B01 delivers a reliable, scalable solution for modern smart‑waste ecosystems.
- Cellular:
- NB-IOT B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B70 / B85
- LoRaWAN:
- Band 868 / 920 / 922 / 926 / 928 / 932 MHz
- OTA:
- Supports FOTA and COTA
Key Specifications
Detailed datasheet available on request.
Communication
- Cellular:
- NB-IOT B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B70 / B85
- LoRaWAN:
- Band 868 / 920 / 922 / 926 / 928 / 932 MHz
- OTA:
- Supports FOTA and COTA
Power and Mechanical:
- Power Supply:
- Industrial 19,000 mAh battery
- Battery Life:
- Up to 3 years (conditional)
- Enclosure Rating:
- IP68
- Operating Temperature:
- –20°C to 75°C (80°C for 3 hours)
Mechanism:
- Object Detection :
- Advanced Optical Scan Technology.
- Sensor:
- 6‑axis sensor for bin and lid movement
Product Features
Engineered for industrial reliability and long-term TCO.
High‑Accuracy Optical Fill‑Level Detection
Advanced optical scanning ensures precise waste‑capacity measurement for reliable route optimization.
Built‑In Movement & Tilt Detection
6‑axis sensing detects bin movement, tampering, or lid opening for enhanced operational awareness.
Ultra‑Long Battery Life (Up to 5 Years)
Powered by a 19Ah industrial battery designed for long‑term, maintenance‑free deployments.
Rugged IP68 Industrial Design
Fully waterproof, dustproof, and impact‑resistant for harsh outdoor environments.
Multi‑Protocol IoT Connectivity
Supports LoRaWAN, NB‑IoT, and BLE for flexible integration into any smart‑city network.
Sustainable & Circular‑Economy Ready
Constructed with 80% recycled plastics and recyclable materials for eco‑friendly lifecycle management.

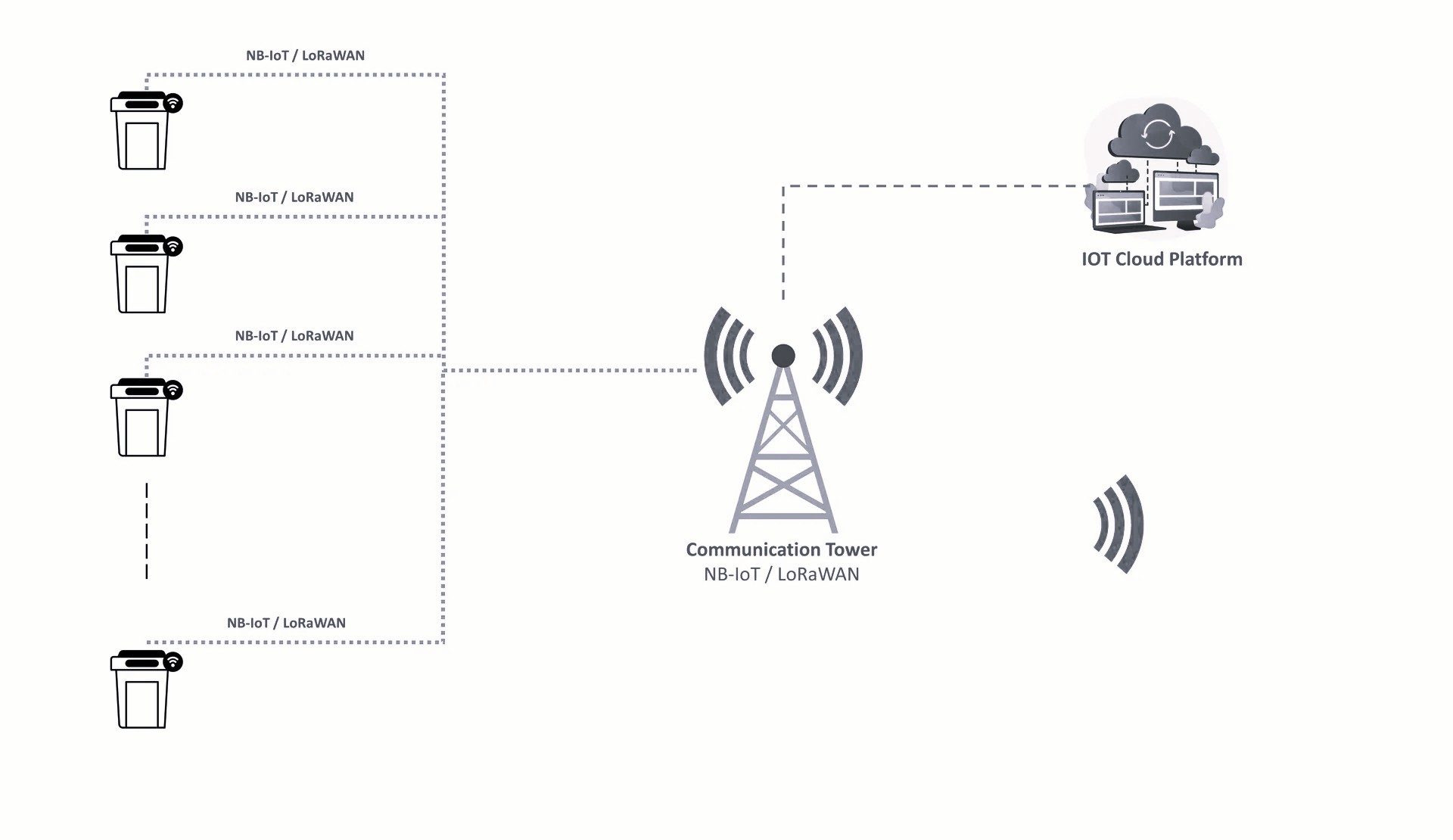

Solution Architecture
How Smart Wastbin integrates into a complete NET WIZARDS architecture.
Integration Overview
The B01 Smart Waste Bin Sensor integrates seamlessly into municipal and facility waste‑management platforms to enable real‑time visibility of bin fill levels across cities, parks, malls, airports, and commercial complexes. By transmitting accurate capacity data through LoRaWAN or NB‑IoT, the system allows operators to dispatch collection teams only when bins are nearing capacity, eliminating unnecessary trips and reducing fuel consumption, CO₂ emissions, and labor costs. Through the IoT View platform, operators can monitor thousands of bins simultaneously, receive movement or tamper alerts, and analyze historical data to optimize collection schedules. This results in cleaner public spaces, improved operational efficiency, and a more sustainable waste‑management ecosystem that supports smart‑city goals.
Downloads
Datasheets, manuals and technical documentation.
