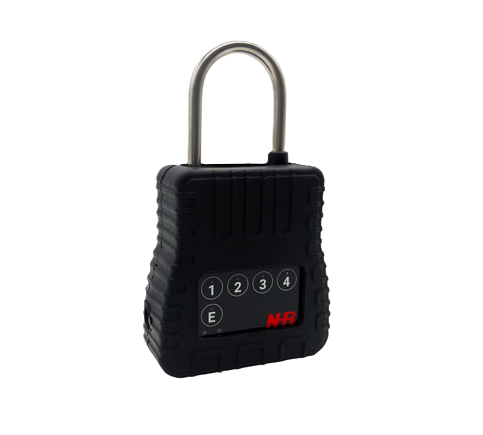

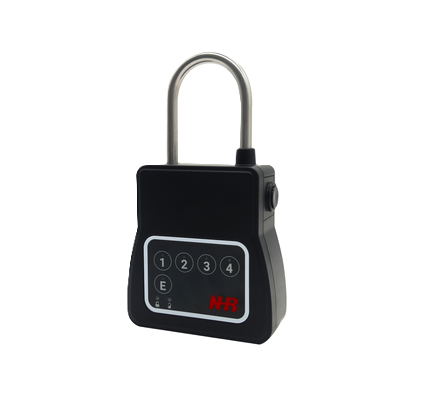

Smart Padlock
A rugged NB‑IoT smart padlock designed for high‑value assets, offering remote unlocking, GPS‑based access reporting, tamper detection, and long‑life battery performance for industrial and field deploy
Smart Padlock
The NB‑IoT Smart Padlock is engineered for securing high‑value assets, containers, cabinets, and field equipment across industrial, logistics, and critical‑infrastructure environments. Built with a reinforced metal body, anti‑theft screws, and a weather‑resistant design, it delivers reliable protection even in harsh outdoor conditions. Its NB‑IoT and Cat‑M1 connectivity ensure long‑range, low‑power communication, while optional BLE provides local unlocking flexibility. GPS coordinate reporting on unlock events adds an additional layer of traceability for mobile assets.
With a powerful 27Ah industrial battery, the padlock achieves multi‑year operation, making it ideal for remote or unattended sites. The device integrates seamlessly with the IOT management platform, enabling remote unlocking, time‑sensitive PIN generation, tamper alerts, and full event logging. API support allows integration with fleet, logistics, or security platforms, creating a unified ecosystem for asset protection and operational visibility.
- Cellular:
- NB‑IoT Bands: B28 / B5 / B20 / B8 / B3 , Cat‑M1
- Tracking:
- GPS coordinate reporting on unlock
- Primary Battery:
- Industrial 27Ah with pulse protection
- Battery Life:
- Up to 5 years (conditional)
Key Specifications
Detailed datasheet available on request.
Connectivity and Power
- Cellular:
- NB‑IoT Bands: B28 / B5 / B20 / B8 / B3 , Cat‑M1
- Tracking:
- GPS coordinate reporting on unlock
- Primary Battery:
- Industrial 27Ah with pulse protection
- Battery Life:
- Up to 5 years (conditional)
Functions:
- Unlock Methods:
- Portal, time‑sensitive PINs, BLE (optional)
- Tamper‑Proof Alerts:
- Unexpected unlock, case‑open detection
- Device Protection :
- Anti‑theft mechanical design with reinforced screws
Mechanical:
- Dimensions:
- 120 × 50 × 205 mm (with rubber)
- Lock Beam:
- 70 mm (inner) × 50 mm × 9.5 mm
- Weight:
- 1.2 kg
- Operating Temperature:
- –30°C to +70°C
Product Features
Engineered for industrial reliability and long-term TCO.
NB‑IoT / Cat‑M1 Connectivity
Reliable long‑range communication for remote sites, low‑power operation, and nationwide coverage.
GPS Unlock Reporting
Sends precise GPS coordinates whenever the lock is opened, enabling full traceability of mobile assets.
Multi‑Mode Smart Access
Supports portal‑based unlocking, time‑sensitive PINs, and optional BLE for local access.
Industrial‑Grade Security Design
Reinforced body, anti‑theft screws, and tamper‑proof sensors for unexpected unlocks or case opening.
Long‑Life 27Ah Battery
Up to 5 years of operation with industrial‑grade pulse protection and optional rechargeable battery.
Cloud Platform & API Integration
Managed through myVIPlock.com with full logs, remote control, and integration into third‑party systems.

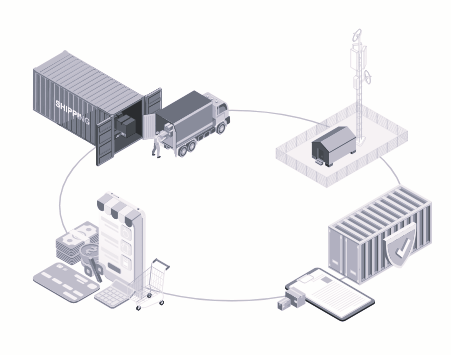

Solution Architecture
How Smart Padlock integrates into a complete NET WIZARDS architecture.
Integration Overview
<p>The smart padlock integrates seamlessly into enterprise and municipal ecosystems through <strong>NB‑IoT/Cat‑M1 </strong>connectivity and a fully documented API. </p><p>The <a target="_blank" rel="noopener noreferrer nofollow" class="text-nw-primary underline" href="http://myVIPlock.com">myVIPlock.com</a> platform provides centralized management for <strong>access control, event logs, GPS unlock locations, and tamper alerts. </strong>Through <strong>API integration,</strong> the lock can be connected to <strong>logistics platforms, fleet management systems, warehouse operations, or security dashboards</strong>, enabling automated workflows such as <strong>scheduled unlocking, geofenced access rules, and real‑time incident notifications. </strong>This makes the padlock a scalable component in any IoT‑driven asset‑security architecture.</p>
Downloads
Datasheets, manuals and technical documentation.
